433mhz DC 3.6V 5V 9V 12V 24V 1CH Wireless RF Receiver Transmitter for DIY

NEW UNIT

⚡️Receiver/Transmitter Spec:

- Working Voltage: DC 3.6V~24V

-Maximum Load: 2A

-Static Current: 3.6 mA ~ 5.5mA.

-Working Frequency: 433MHz.

-Reception Sensitivity: ≥ -107dBm.

-Modulation Mode:ASK (superheterodyne).

-Number Of Stored Remote Controls: ≤ 10.

-Working Mode: Momentary, Toggle, Latching Mode.

-Learning Style: Learning Button.

-Working Temperature: -20 degrees 80 degrees.

-Appearance Size: 26mmx 13mm x 1mm (length × width × high).

[[[[ RF RECEIVER ONLY ]]]]

✅Setup

Set up(Momentary)

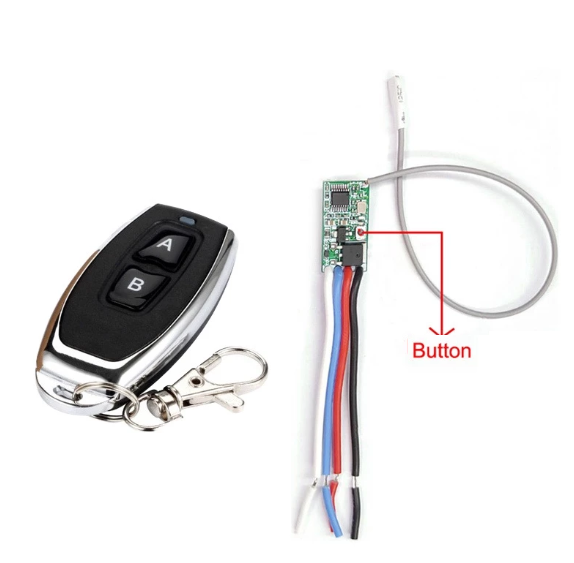

1. Press the learning button(on the Receiver) once. Wait for 3 seconds;

2. Press one button on the remote control. Wait for 3 seconds. Succeed.

Set up(Toggle)

1. Press the learning button(on the Receiver) twice. Wait for 3 seconds;

2. Press one button on the remote control. Wait for 3 seconds. Succeed.

Set up(Latched)

1. Press the learning button(on the Receiver) third times. Wait for 3 seconds;

2. Press button "A" on the remote control. Wait for 3 seconds.

3. Press button "B" on the remote control. Wait for 3 seconds. Succeed.

✅You can match the Transmitter with the Relay Receiver Module in 3 modes.

Momentary Mode:

1. Press and hold one button, relay will turn on;

2. Release the button, this relay will turn off.

Toggle Mode:

1. Press button "A", relay will turn on;

2. Press button "A" again, this relay will turn off.

Latched mode:

1. Press button "A", relay will turn on;

2. Press button "B", this relay will turn off.

Delete the existing data about operating modes

Press the learning button (on the Receiver) 8 times.

The existing data will be deleted succeed.

✅Reset:

Press the learning button (on the Receiver) 8 times. succeed.

Note:After reset all the wireless switch cannot work anymore.
