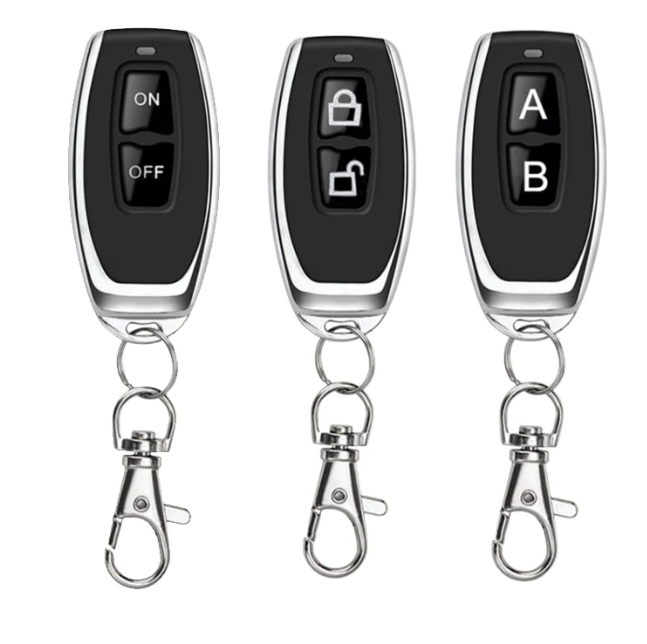

433Mhz Wireless Remote Control for Receiver/Transmitter

ON/OFF Button or A/B Button

NEW UNIT

⚡️Wireless Remote Control Spec:

- Operating frequency: 433MHz

- Power by 2 Pcs 3V CR2016 Battery (Battery included ) - Material: PVC;

- Button: 2 buttons;

- Size: 60mm x 30mm;

- Operating voltage: 3V ;

- Operating Current: 12mA;

- Transmitting power: 10mw;

- Modulation mode: ASK (AM).

- Encoding type: Learning.

- Transfers distance: 20~50m

[[[ REMOTE CONTROL ONLY]]]]

✅Setup

Set up(Momentary)

1. Press the learning button(on the Receiver) once. Wait for 3 seconds;

2. Press one button on the remote control. Wait for 3 seconds. Succeed.

Set up(Toggle)

1. Press the learning button(on the Receiver) twice. Wait for 3 seconds;

2. Press one button on the remote control. Wait for 3 seconds. Succeed.

Set up(Latched)

1. Press the learning button(on the Receiver) third times. Wait for 3 seconds;

2. Press button "A" on the remote control. Wait for 3 seconds.

3. Press button "B" on the remote control. Wait for 3 seconds. Succeed.

✅You can match the Transmitter with the Relay Receiver Module in 3 modes.

Momentary Mode:

1. Press and hold one button, relay will turn on;

2. Release the button, this relay will turn off.

Toggle Mode:

1. Press button "A", relay will turn on;

2. Press button "A" again, this relay will turn off.

Latched mode:

1. Press button "A", relay will turn on;

2. Press button "B", this relay will turn off.

Delete the existing data about operating modes

Press the learning button (on the Receiver) 8 times.

The existing data will be deleted succeed.

✅Reset:

Press the learning button (on the Receiver) 8 times. succeed.

Note:After reset all the wireless switch cannot work anymore.
